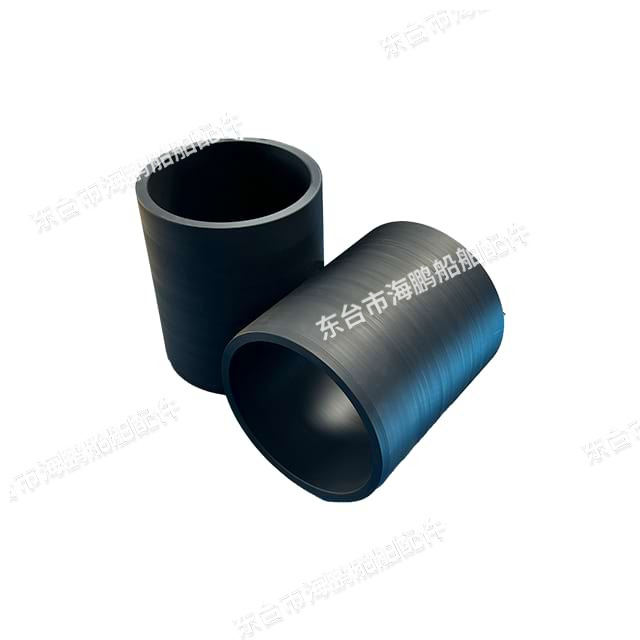

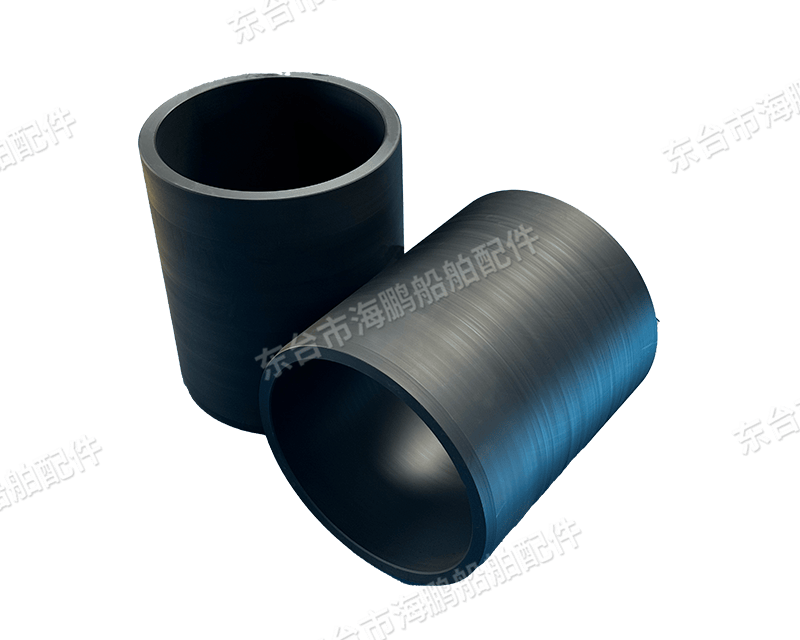

High Molecular Weight Nylon Bearings

Polymer nylon bearings are bearings made of nylon as the main raw material.  They are widely used in various mechanical equipment.  The following is a detailed introduction:

Structural features

• Integral structure: There are usually two structures: integral and combined.  The integral nylon bearing has a simple structure and is made of a single nylon material.  It is suitable for some occasions with high requirements for structural compactness and small loads;  the combined nylon bearing may combine metal or other material components, such as embedding metal bushings or reinforcement rings inside the nylon bearing to improve the bearing capacity and stability.  It is suitable for situations with large loads or high precision requirements.

• Surface structure: In order to improve lubrication performance and reduce friction, the surface of nylon bearings may be designed with various forms of lubrication grooves or textures.  These lubrication grooves can store lubricating oil or play a role in guiding lubricating media, so that the bearing can maintain a good lubrication state during operation and reduce friction loss.

Working principle

• Sliding friction principle: Polymer nylon bearings are generally sliding bearings.  When working, the shaft is in direct contact with the inner surface of the nylon bearing and produces relative sliding.  Nylon material has a low friction coefficient and can form a relatively smooth sliding interface between the shaft and the bearing, reducing friction resistance and allowing the shaft to rotate smoothly.

• Self-lubricating principle: Nylon itself has a certain degree of self-lubricating properties.  The amide groups in its molecular structure can form a lubricating film on the surface during the friction process.  This lubricating film can further reduce the friction coefficient and reduce wear.  In addition, it can also ensure the normal operation of the bearing in the absence of external lubrication conditions or poor lubrication conditions.

• Elastic deformation principle: Nylon material has good elasticity and flexibility.  When the bearing is loaded, the nylon bearing will undergo a certain degree of elastic deformation.  This deformation can make the contact area between the bearing and the shaft more uniform, thereby more effectively dispersing the load, reducing the pressure per unit area, and improving the bearing's load capacity and service life.

Application advantages

• Good wear resistance: Nylon has high hardness and strength, which can resist friction between the shaft and the bearing and reduce wear during long-term use.

• Self-lubricating property: Good lubrication effect can be guaranteed to a certain extent without adding a large amount of lubricant, reducing maintenance costs and the complexity of the lubrication system.

• Low noise and low vibration: The elasticity of nylon can effectively absorb and isolate vibration and noise, making the equipment quieter and more stable during operation.

• Corrosion resistance: It has good tolerance to most chemicals, can maintain good performance in harsh chemical environments, and is not easily damaged by corrosion.

• Light weight: Compared with metal bearings, nylon bearings are significantly lighter, which can reduce the overall weight and improve the operating efficiency and flexibility of some equipment or components that have weight requirements.

Scope of application

• Industrial machinery: In industrial equipment such as textile machinery, printing machinery, and packaging machinery, nylon bearings can be used to support various transmission shafts, rollers and other components, which can meet the equipment's requirements for low noise, low friction and wear resistance.

• Automotive field: It can be applied to automotive interior parts, such as seat adjustment mechanisms, door and window lifting systems, etc.  Its self-lubricating and low noise characteristics help improve the comfort of automotive interiors;  in automotive engines, transmissions and other components, it can also be used as a material for some small bearings or bushings, giving full play to its wear resistance and corrosion resistance.

• Electronic appliances: In electronic equipment, such as computer cooling fans, printer transmission parts, etc., nylon bearings can ensure the stable operation and service life of the equipment due to their good insulation performance, low noise and self-lubrication.
