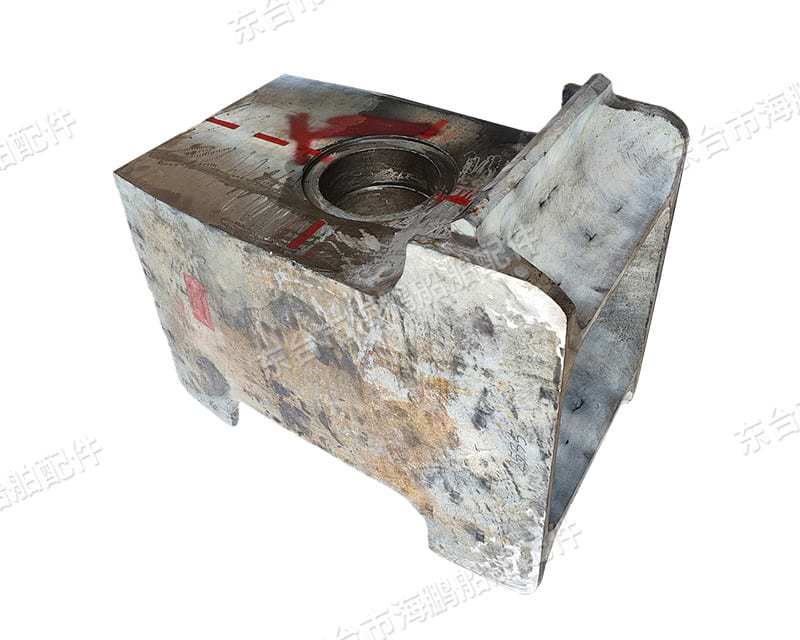

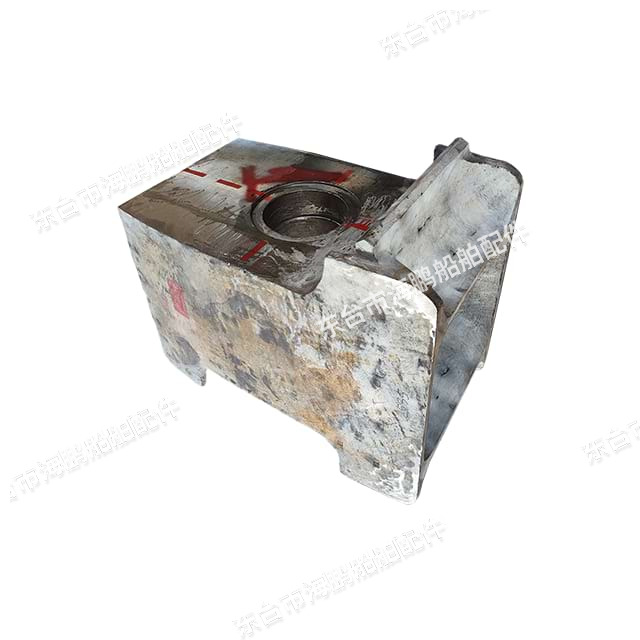

Rudder Pintle Castings

Role and function

• Connection and support: It is mainly used to connect the rudder blade and the hull structure or other rudder system components, such as the rudder arm, to support the rudder blade so that the rudder blade can maintain the correct position and posture during the ship's navigation.

• Transmission of force and torque: When the ship turns, the rudder pintle casting can transfer the torque applied to the rudder blade by the steering gear to the hull structure, and can also transfer the hydrodynamic force acting on the rudder blade to the hull to achieve the ship's steering control.

Structural features

• Shape: It is usually cylindrical or conical, and its two ends may have different diameters or shapes to meet the connection requirements with different components.   Some rudder pintle castings may also have structures such as bosses, grooves or keyways for installation and positioning or to increase the stability of the connection.

• Size: The size varies according to the type, tonnage and design requirements of the rudder system of the ship.   Generally speaking, the rudder pintle castings of large ships are larger in size to withstand greater force and torque;   the rudder pintle castings of small ships are relatively small in size.

Material selection

• Forged steel materials: such as 45 steel, 40Cr, etc. 45 steel has high strength and hardness, good comprehensive performance, can meet the use requirements of general ship rudder pintles, and has relatively low cost.   The hardenability and comprehensive mechanical properties of 40Cr steel after quenching and tempering are better than 45 steel.   It has good low-temperature impact toughness and high fatigue jx, and is suitable for rudder pintle castings with high strength and toughness requirements.

• Stainless steel materials: For some ships working in harsh marine environments, or ships with extremely high corrosion resistance requirements, stainless steel materials such as 316L will be selected.   316L stainless steel has good corrosion resistance, seawater erosion resistance and good mechanical properties, which can effectively prevent the rudder pintle from corroding in seawater and extend its service life.

Manufacturing process

• Blank preparation: Select suitable steel billets, cut according to the design size, and ensure that the size and weight of the billets meet the requirements.

• Heating forging: Heat the blank to the appropriate forging temperature range, and then use forging equipment such as air hammer, friction press, hydraulic press, etc. to perform multiple forging operations such as upsetting and stretching on the blank to improve the internal structure of the material, make it more dense and uniform, and improve the mechanical properties.

• Forming: During the forging process, by controlling the forging ratio and forging process parameters, the blank is gradually formed into a shape and size close to the product.   Some auxiliary processing may also be required, such as punching and trimming.

Casting process

• Model making: According to the design drawings of the rudder pintle, make the corresponding casting model, which can be a wooden mold, metal mold or lost foam, etc.

• Sand box molding: Put the model into the sand box, fill it with molding sand and compact it to form a casting cavity.   For some complex-shaped rudder pintles, a combined sand box or a special molding process may be required.

• Melting and pouring: The selected casting material is melted in a furnace to a suitable temperature and composition, and then the liquid metal is slowly poured into the mold cavity.   After it cools and solidifies, the pintle casting blank can be obtained.

Subsequent processing

• Heat treatment: The pintle blank after forging or casting is heat treated, such as normalizing, quenching, tempering, quenching and tempering, to eliminate internal stress, improve the material structure, and improve its mechanical properties such as strength, toughness and hardness.

• Machining: The pintle is finely processed through machining processes such as turning, grinding, boring, and drilling to ensure that its dimensional accuracy and surface roughness meet the design requirements so that it can cooperate well with other components.

• Surface treatment: In order to improve the corrosion resistance and wear resistance of the pintle, it is usually surface treated, such as galvanizing, cadmium plating, painting, spraying anti-corrosion coating, etc.
