Every ship relies on a robust propulsion train to cut through the water. However, you should view this mechanical link as a critical operational bottleneck, not just spinning metal. When a component fails here, you face catastrophic downtime, massive dry-docking fees, and severe environmental fines. A successful setup balances transmission efficiency, structural fatigue resistance, precise alignment, and strict IMO environmental compliance.
We created this guide to move beyond basic definitions. You will gain an evidence-based framework to evaluate components, materials, and engineering specifications. By understanding the intricate dynamics at play, you can specify stronger, longer-lasting marine propulsion assemblies. We will explore structural anatomy, load management, material science, and vendor selection strategies. You will learn exactly how to protect your vessel against premature wear and catastrophic mechanical failure.
System Integrity: A marine shaft system handles complex, simultaneous loads (torque, bending, and axial thrust) requiring segmented engineering (thrust, intermediate, and tail sections).
Modern Alignment: Industry standards have shifted from "absolute straight line" alignment to "Fair Curve Alignment" to accommodate natural hull deflection and bearing sag.
Material & Surface Optimization: Advanced alloys (Duplex, Monel) paired with specific surface treatments (weld cladding, >60 HRC hardness) are non-negotiable for high-wear environments.
Sealing & Compliance: Multi-barrier stern shaft seals are the primary defense against bearing failure and IMO-regulated oil pollution.
A vessel's drive train is not a single solid rod. Engineers segment it into specialized zones. Each section absorbs distinct forces. You must evaluate these segments individually to ensure holistic reliability.
The thrust shaft acts as the primary buffer. It absorbs the immense axial thrust generated by the propeller in the water. Instead of allowing this crushing force to travel into the sensitive engine crankshaft, the thrust block redirects it. It transfers the load directly into the heavy hull structure and keel.
Engineers must consider vibration isolation during design. In most commercial vessels, builders isolate the thrust block from the main engine. They typically place it at a distance equal to 6 to 12 times the shaft diameter. This spacing mitigates aggressive engine vibrations. It prevents harmonic damage from traveling down the driveline.
This middle section bridges the considerable distance between the thrust block and the tail end. It relies heavily on proper support. When you evaluate this section, you must carefully calculate the placement of each intermediate bearing.
Common Mistake: Many operators believe "more bearings equal more support." This is a dangerous misconception. Over-constraining the assembly reduces necessary transverse flexibility. When the hull naturally flexes in heavy seas, a highly constrained driveline cannot bend. This rigidity drastically increases the risk of localized overload. Individual supports fail rapidly under these pinched conditions.
The tail section extends directly through the hull into the open water. You may often hear it called the propeller shaft. It represents the final drive section.
You must evaluate this piece for severe load tolerance. It handles the overhanging deadweight of the massive propeller. It also endures extreme torsional stress as the blades chop through varying water densities. Manufacturers must precisely machine the tapered ends. Flawed tapers create intense stress concentrations. These weak points quickly lead to fatigue cracking.
The stern tube houses the critical tail section. It provides rigid structural support. It also creates a secure cavity for the sealing mechanisms. The entire assembly relies on flawless internal integration.
First, it utilizes a specialized stern tube bearing. Engineers often line this component using Babbitt or white metal. They must calculate specific length-to-diameter (L/d) ratios to distribute the heavy loads evenly. Second, the system depends on a robust stern shaft seal. This barrier completely prevents seawater from invading the dry internal compartments.
Propulsion hardware operates in a hostile, dynamic environment. The metal continuously fights against multiple overlapping forces. You must understand these realities to specify the correct parts.
Every driveline continuously battles four concurrent physical forces. Your engineering calculations must account for each one:
Torque: The rotational twisting power generated by the massive engine cylinders.
Bending Moment: The downward pull from the propeller weight combined with the hull's natural sag.
Axial Thrust: The linear compression created when the blades push water backward to drive the ship forward.
Transverse Load: The sudden, violent sideways impacts caused by rogue waves hitting the hull.
You must match your driveline to your specific blade type. The industry divides these into two main categories.
Fixed Pitch (FPP): These offer the highest baseline efficiency. They possess no internal moving parts in the hub. However, they require careful engine load matching. Engineers use the Propeller Law, where power is proportional to the cube of the velocity ($P \propto V^3$). You must also build in a Sea Margin of 10-30% to handle rough weather resistance.
Controllable Pitch (CPP): These blades can physically rotate on their axes. They offer vastly superior maneuverability for ferries and tugs. You can reverse thrust without reversing the engine. However, they suffer a 1-2% hydrodynamic efficiency penalty. The complex internal hydraulics require a much larger, bulkier hub diameter.
Vibration destroys heavy machinery. Shaft whirling is a specific, destructive transverse vibration. The metal literally whips in a circular motion as it spins.
Every driveline has a critical whirling speed limit. The span between the support mounts directly dictates this limit. Before you procure a system, you must verify the manufacturer's calculations. Demand their torsional and axial vibration models. Compare these models directly against your vessel's specific operational profile and cruising speeds. Avoid running the engine at identified harmonic resonance speeds.
Saltwater relentlessly attacks submerged metal. If you choose the wrong base material, rapid corrosion and metal fatigue will destroy the installation. You must balance sheer strength against chemical resistance.
Industry standards classify base materials into three main tiers. The chart below outlines the options.
Material Category | Common Grades | Primary Characteristic | Best Application |
|---|---|---|---|
Standard Carbon Steels | C45, 34CrNiMo6 | Highly cost-effective but highly vulnerable. | General commercial vessels. They strictly require heavy external liners or coatings. |
Stainless Steels | 316L, Duplex | Inherent corrosion resistance. High yield strength. | Modern commercial standard. Eliminates the need for heavy protective liners. |
High-Performance Alloys | Inconel, Monel, Titanium | Absolute immunity to saltwater. Extreme strength-to-weight ratio. | Specialized naval applications, high-speed patrol boats, and extreme high-load scenarios. |
You rarely use bare metal in the ocean. Engineers "marinize" the components. They alter the surface chemistry to survive harsh aquatic conditions.
Weld Cladding: Manufacturers can apply premium alloys like Inconel directly over standard steel cores. They weld these expensive metals solely at the high-wear friction points. This extends the operational life significantly. It avoids the immense cost of forging a solid exotic alloy billet.
Machining Tolerances: Surface roughness directly impacts seal survival. High-speed applications exceeding 8 meters per second require strict surface finishes. Demand a finish between 0.2 and 0.4 µm Ra. Furthermore, mandate a surface hardness exceeding 60 HRC. Manufacturers achieve this extreme hardness via advanced nitriding processes or applied tungsten carbide coatings. Soft metal will rapidly chew through expensive rubber barriers.
Cathodic Protection: You must integrate active corrosion defense. Install Sacrificial Anodes made of zinc or aluminum. These metals corrode purposefully to protect the steel. For larger commercial vessels, install an Impressed Current Cathodic Protection (ICCP) system. This electronic system pumps a small electrical current into the water to neutralize corrosive ionic activity.

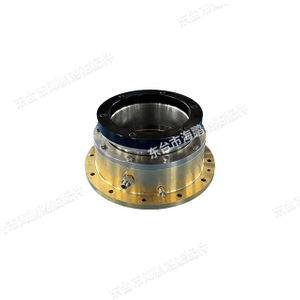

The aft sealing arrangement represents your primary line of defense. A minor failure here cascades into a multimillion-dollar disaster.
You must view the aft seal as the single most critical failure point. A compromised rubber barrier leads directly to bearing washout. Seawater violently flushes the lubricating oil out of the housing. The metal rubs dry against metal, causing severe shaft scoring. Furthermore, leaking oil triggers massive IMO environmental penalties. Port authorities frequently detain polluting vessels.
Never rely on a single rubber lip. We strongly advocate for a multi-barrier approach.
Best Practice: Implement a robust 4-lip setup. Orient two lips facing aft; they physically block invading seawater. Orient two lips facing forward; they retain the vital internal lubricant.
Additionally, mandate the inclusion of physical leak detection ports. Position these small drainage channels between the individual barriers. If the outermost lip fails, the port safely drains the fluid inward for inspection. This allows your crew to execute predictive maintenance before the inner lips blow out entirely.
The rubber compound dictates thermal and chemical resistance. Evaluate your operational environment carefully.
NBR (Nitrile): This serves as the standard baseline material. It handles cold seawater and general mineral oils perfectly.
FKM (Fluorocarbon): You need this for elevated thermal environments. It also withstands extreme high line speeds up to 25 meters per second without melting.
HNBR (Hydrogenated Nitrile): Engineers select this rugged compound for highly abrasive environments. It survives muddy rivers and sand-filled coastal shallows.
Historically, shipwrights forced components into a perfectly straight line. This old method ignores modern hydrodynamic realities. Today, we address alignment through the "Fair Curve Alignment" method, utilizing Gap and Sag principles.
Steel ships bend. A loaded cargo ship physically changes shape in the water. The stern structure naturally sinks under massive operational loads. The entire driveline must naturally curve to match this dynamic sinking. If you force an impossible absolute straight line, the rotating metal will furiously grind against the edges of the aft supports. Modern engineers calculate this expected curve in advance. They purposefully misalign the cold engine so it bends into perfect alignment under hot, loaded conditions.
Procuring heavy marine machinery requires intense vetting. You cannot simply buy these parts from a generic industrial catalog. Your vendor must prove specialized maritime competency.
Class certification serves as the ultimate proof of trustworthiness. Ensure your chosen supplier holds active, verifiable certifications from major societies. Look for stamps from DNV, ABS, or Lloyd’s Register. These strict approvals must cover both the raw base materials and their proprietary coating technologies. Unclassed steel poses an unacceptable maritime risk.
Verify the vendor's physical factory capacity. Heavy maritime hardware demands enormous machinery. Seek a supplier possessing continuous forging capabilities for lengths up to 20 or more meters. A continuous single-piece forging is vastly superior. It actively avoids the weak points caused by unnecessary mechanical couplings and bolted flanges. Every bolted joint introduces a potential failure point.
Evaluate suppliers who offer specialized refurbishment services alongside new manufacturing. Advanced vendors can salvage heavily worn components via robotic weld cladding and precision re-machining. They strip the damaged metal, weld fresh alloy layers, and turn it back to original specifications. This process safely extends a lifecycle by ten or more years. It provides massive budget efficiency. You avoid the staggering financial hit of buying entirely new raw forgings.
Specifying propulsion components is an exercise in managing complex force loads and aggressive environmental factors. You protect your vessel through precise material science and modern alignment techniques. Remember these final points:
Do not over-constrain the driveline; fewer supports often yield better transverse flexibility.
Embrace Fair Curve Alignment to accommodate natural hull bending.
Invest heavily in multi-barrier seals to prevent catastrophic bearing washout and environmental fines.
Demand >60 HRC surface hardness on high-speed sections to prevent seal chewing.
Your actionable next step is proactive vendor engagement. Prioritize manufacturers who lead their pitch with advanced vibration modeling and redundant sealing configurations. Initiate your dialogue by requesting an immediate review of their class society certifications. Provide them with your specific operational load profiles to ensure their engineering matches your reality.
A: Ships are not rigid structures. The steel hull naturally bends and deflects under changing cargo loads and heavy ocean waves. If you force an absolute straight-line alignment, the spinning metal will pinch against the support housings as the ship bends. Engineers use Fair Curve Alignment to purposefully introduce a slight curve, allowing the assembly to naturally follow the hull's operational sag.
A: Marinizing involves applying specialized surface treatments to bare metal to help it survive highly corrosive saltwater. Raw steel rusts rapidly in the ocean. Engineers marinize components using weld cladding, which bonds expensive corrosion-resistant alloys directly over high-wear areas. They also apply ultra-hard coatings and utilize active cathodic protection to prevent chemical degradation.
A: A Fixed Pitch Propeller (FPP) utilizes a solid, simpler hub. A Controllable Pitch Propeller (CPP) requires complex internal hydraulics to physically rotate the blades. Because CPP hubs contain moving parts, they are much heavier and wider. This larger diameter requires a significantly thicker, hollow driveline to accommodate hydraulic oil lines and handle the increased bending moments.
A: The metal interacting with the aft rubber barriers must be exceptionally smooth and hard. Industry standards demand a surface finish roughness (Ra) strictly between 0.2 and 0.8 µm. For high-speed applications, engineers specify a tighter 0.2 to 0.4 µm Ra. Additionally, the surface hardness must exceed 60 HRC to prevent the rubber seals from carving grooves into the spinning metal.
A: You should use the absolute minimum number required to safely support the weight and prevent dangerous whirling vibrations. Adding excess supports does not increase safety. In fact, over-constraining the driveline reduces its ability to flex with the ship. Spacing depends directly on the calculated critical whirling speed limits specific to your chosen diameter and material.
