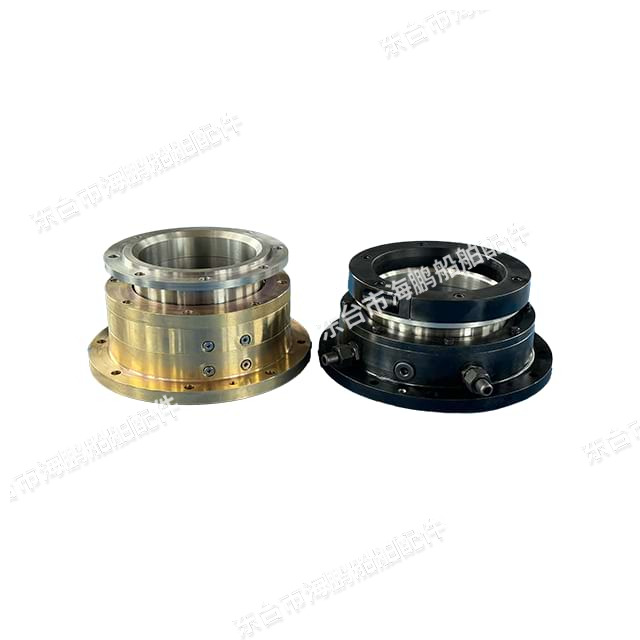

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Oil-Lubricated Stern Shaft Seal Device With Baffle Ring

Quantity:
Availability:





Inquire Add to Basket

Previous:

Next:

Stern tube seal Stern tube bearing propeller shaft rudder stock rudder blade

Product Description

Basic Parameters

Order Instructions

Oil-lubricated stern shaft seal device with baffle ring

Category: Oil-lubricated stern shaft seal device

Diameter range of stern shaft	50-1150mm
Diameter of wearproof liner of stern shafts	70-1250mm
Lubricating oil working pressure	1-2bar
Lubricating oil working temperature	-25℃-+110℃
Line speed of stern shaft wearproof liner	≤7 m/sec
Average leakage	5-30mh

Oil lubrication stern shaft sealing apparatus

XXX----siza:liner diameter
XX---F-with sanc ring,D-with sundry object ring,
W-with device againat fishing net
it is single sealing type if no code letter
X---w th twa(2)scal rings
w th three(3)seal rings
w th four(4)soal rings
HP---Marks:Hai Peng oil lubrication stern shaft fwd.aft sealing apparatus

An example of marks

Sealing apparatus:a liner diameter of 220mm and three seal rings for the af:sealing;if there is a sand prevention ring
The mark of forward ster shaft sealing apparatus wl be HPO2-220;
The mark of aft stern shaft sealing apparatus wil be HPH3F-220

Ship shafting products

Size table of HPQ2 HPH3
Size Specifications	70	90	110	125	140	155	170	190	200	220	240	260	280	300	330	355	380	400	420
A	70	90	110	125	140	155	170	190	200	220	240	260	280	300	330	355	380	400	420
WMAX	50	75	95	110	125	140	155	175	185	205	220	240	260	280	310	330	355	375	395
B	160	160	160	160	160	160	160	160	160	160	170	175	175	175	175	195	195	200	200
C	205	225	245	275	290	305	320	340	350	370	425	445	465	485	515	565	590	610	630
D	180	200	220	245	260	275	290	310	320	340	390	410	430	450	480	525	550	570	590
E	8	8	8	8	8	8	8	8	8	8	12	12	12	12	12	12	12	12	12
	M10	M10	M10	M12	M12	M12	M12	M12	M12	M12	M16	M16	M16	M16	M16	M20	M20	M20	M20
F	155	175	195	210	225	240	255	275	285	305	345	365	385	405	435	475	500	520	540
G	5	5	5	5	5	6	6	6	6	6	7	7	7	7	7	7	7	7	7
H	15	15	15	15	15	20	20	20	20	20	20	20	20	20	20	30	30	30	30
I	180	180	180	180	180	180	180	180	180	180	190	195	195	195	195	215	215	220	220
K	120	140	165	184	195	214	240	270	280	300	320	340	360	375	425	450	480	500	520
L	100	120	145	164	175	194	220	240	250	270	290	310	330	346	390	416	440	460	486
M	80	100	125	145	155	175	200	214	224	240	260	284	300	320	360	384	406	424	450
T	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	18	18	18	18
0	8	8	8	8	8	8	8	8	8	8	8	8	12	12	12	12	12	12	12
	M8	M8	M8	M8	M8	M8	M8	M12	M12	M12	M12	M12	M12	M12	M12	M16	M16	M16	M16
P	12	12	12	12	12	12	12	12	12	12	12	15	15	15	15	15	15	20	20
Q	145	145	145	145	145	160	160	160	160	160	175	175	175	175	175	195	195	195	195
R	140	140	175	190	200	210	230	250	260	280	310	330	350	370	400	430	460	480	500
S	130	130	130	130	130	145	145	145	145	145	160	160	160	160	160	184	184	184	184

Size table of HPH4 Other sizes are the same as above mentioned.
B	/	/	/	/	/	200	200	200	200	200	215	220	220	220	220	235	235	240	240
I	/	/	/	/	/	220	220	220	220	220	235	240	240	240	240	255	255	260	260
α	/	/	/	/	/	9	9	9	9	9	9	9	9	9	9	9	9	9	9
V	/	/	/	/	/	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8	φ8

Size table of HPH3F and HPH3DW Other sizes are the same as above mentioned.
B	180	180	180	180	180	180	180	180	180	180	190	195	195	195	195	215	215	220	220
Ｉ	200	200	200	200	200	200	200	200	200	200	210	215	215	215	215	235	235	240	240
N	205	225	245	260	280	305	320	340	345	365	410	427	450	485	505	540	580	595	620
Y	8	8	8	8	8	8	8	10	10	10	10	12	12	12	16	16	16	16	16
	M10	M10	M10	M10	M10	M10	M10	M10	M10	M10	M12	M12	M16	M16	M16	M16	M16	M16	M16
Z	250	270	290	305	325	350	365	385	390	410	460	475	505	545	565	595	635	650	675

HPFHPH4DW size table N, Z, Y dimensions refer to the above table Other dimensions are the same as above
B	/	/	/	/	/	220	220	220	220	220	240	240	240	240	240	255	255	260	260
1	/	/	/	/	/	240	240	240	240	240	260	260	260	260	260	275	275	280	280

Ship shafting products

Size Specifications	450	480	500	530	560	600	630	670	710	750	800	850	900	950	1000	1060	1120	1180	1250
A	450	480	500	530	560	600	630	670	710	750	800	850	900	950	1000	1060	1120	1180	1250
WMAX	425	455	475	500	530	560	590	630	670	710	750	795	840	890	940	990	1040	1090	1150
B	225	225	225	225	240	240	245	245	280	280	310	310	330	330	330	350	355	355	370
C	675	705	725	755	820	860	890	930	990	1030	1090	1140	1200	1250	1300	1400	1460	1520	1595
D	630	660	680	710	765	805	835	875	930	970	1030	1080	1135	1185	1235	1325	1385	1445	1520
E	12	12	12	12	12	12	12	12	16	16	20	20	20	20	20	24	24	24	24
E	M20	M20	M20	M20	M24	M24	M24	M24	M24	M24	M24	M24	M24	M24	M24	M30	M30	M30	M30
F	575	605	625	655	700	740	770	810	865	905	960	1010	1065	1115	1165	1245	1305	1365	1440
G	8	8	8	8	9	9	9	9	10	10	10	10	11	11	11	11	11	11	11
H	30	30	30	30	35	35	35	35	40	40	40	40	45	45	45	50	50	50	50
I	245	245	245	245	260	260	265	265	300	300	330	330	350	350	350	370	375	375	390
K	550	590	600	630	675	700	760	800	840	885	945	1000	1070	1130	1170	1230	1300	1300	1430
L	510	550	560	590	630	660	710	750	790	836	890	950	1010	1070	1110	1170	1230	1290	1360
M	476	510	526	550	588	620	670	710	740	780	825	870	920	970	1040	1100	1160	1220	1290
T	18	18	18	18	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
0	12	12	12	12	12	12	12	12	12	16	16	16	16	16	20	20	20	24	24
0	M16	M20	M20	M20	M20	M20	M24	M24	M24	M24	M24	M24	M24	M24	M24	M24	M30	M30	M30
P	20	20	20	20	20	20	25	25	25	25	30	30	35	35	35	35	40	40	40
Q	220	220	220	220	240	240	255	255	285	285	285	285	305	305	305	325	325	325	325
R	530	560	580	610	650	690	730	785	830	870	915	960	1010	1060	1130	1200	1250	1300	1380
S	206	206	206	206	224	224	241	241	270	270	270	270	290	290	290	310	310	310	310

B	270	270	270	270	285	285	290	290	330	330	365	365	385	385	385	405	410	410	425
I	290	290	290	290	305	305	310	310	350	350	393	393	417	417	417	436	441	441	461
α	8	8	8	8	8	8	8	8	8	8	18	18	18	18	18	15	15	15	15
V	φ12	φ12	φ12	φ12	φ12	φ12	φ12	φ12	φ12	φ12	φ12	612	612	φ12	φ12	φ15	φ15	φ15	φ15

B	245	245	245	245	260	260	265	265
I	265	265	265	265	280	280	285	285
N	650	682	700	730	780	830	860	895
Y	16	16	16	16	16	16	16	16
Y	M16	M16	M16	M16	M20	M20	M20	M20
Z	705	740	755	785	845	895	925	960

B	290	290	290	290	305	305	310	310
I	310	310	310	310	325	325	330	330

Order Instructions

(1)Ship name or ship number,owner,shipyard

(2)Loaded draft

(3)Stern shaft center line height from the base line

(4)Stern shaft rotation speed

(5)Stem shaft diameter

(6)Navigtion area

(7)Variety and quality of spare parts

(8)Other requirements
