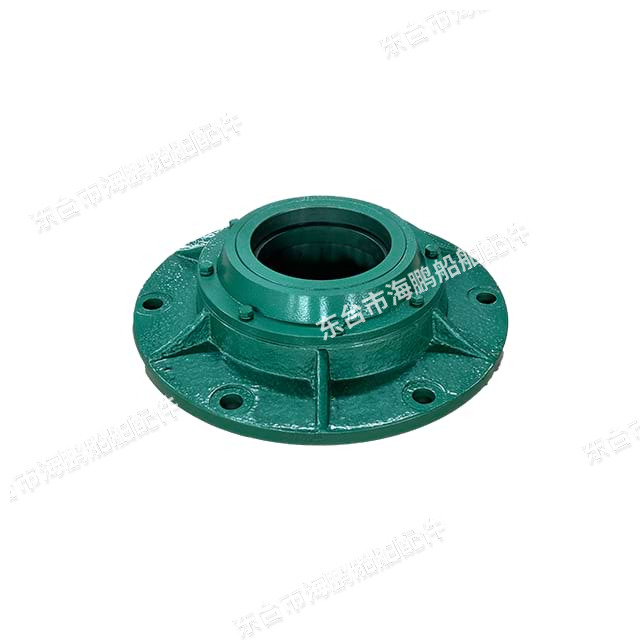

CB789-87 Roller Rudder Bearing

Quantity:
Availability:





Inquire Add to Basket

Stern tube seal Stern tube bearing propeller shaft rudder stock rudder blade

Product Description

Basic Parameters

CB789-87 roller rudder bearing

Category: CB789-87 roller rudder bearing

Roller rudder bearing
Type	Name	Applicable rod diameter	Applicable scope

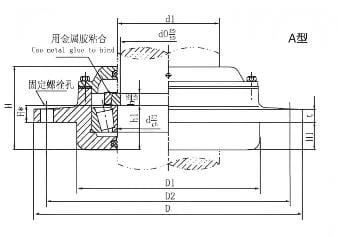

A	Lightweight roller bearing	φ40-φ150	Suitable for energy systems with small loads and small winding angle of the energy rod

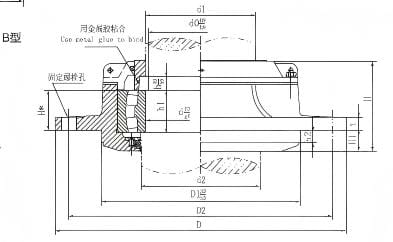

B	Heavy duty roller bearing	φ120-φ340	With automatic self-aligning capability, it is suitable for suspended energy

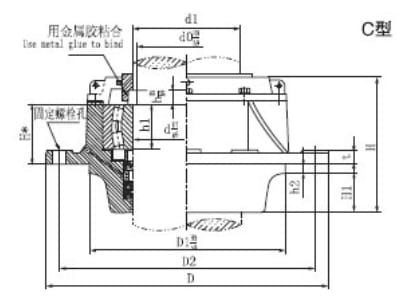

C	Watertight roller upper rudder bearing	φ120-φ400	It has the characteristics of Type B and is watertight

Marking example:

Rudder stock diameter Φ100mm

Rudder bearing mark on A-type roller: A100CB789-87

Marking example:

Rudder stock diameter Φ180mm

Rudder bearing mark on B-type roller: B180CB789-87

Marking example:

Rudder stock diameter Φ260mm

Rudder bearing mark on C-type roller: C260CB*789-87

CB*789-87 roller upper rudder bearing is a key component in the ship's rudder device. The following is a detailed introduction about it:

Function

Support positioning: mainly used to support the rudder bar, ensure that the rudder bar remains in the correct position during the ship's navigation, so that the rudder blade can rotate left and right with the rudder bar, thereby controlling the ship's heading.
Load bearing: bear the radial load caused by the hydrodynamic force acting on the rudder blade, and the axial load generated by the gravity of the rudder system, to ensure the stable operation of the rudder system.
Ensure watertightness: prevent water from entering the ship from the connection between the rudder bar and the hull, ensure the watertightness of the hull, and maintain the safety and stability of the ship.
Auxiliary rotation: provide good conditions for the rotation of the rudder bar, reduce friction and resistance during the rotation process, so that the rudder bar can rotate flexibly and realize the steering operation of the ship.

Structural composition

Bearing part: usually composed of a thrust roller bearing and a vertical sliding bearing. The ball bearing is responsible for bearing the weight of the rudder, while the vertical bearing is used to bear the lateral force.
Sealing device: such as stuffing box, etc., used to ensure the sealing between the upper rudder bearing and the rudder stock to prevent water leakage.
Connecting parts: including flanges, bolts, etc., used to fix the upper rudder bearing on the deck of the steering gear room and connect it with the rudder stock, rudder blade and other parts.
Lubrication system: Some upper rudder bearings are also equipped with lubrication devices, such as oil filling holes, oil tanks, etc., which reduce the friction between the bearing and the rudder stock and reduce wear by injecting lubricating oil.

Installation position

The upper rudder bearing is generally installed on the deck of the steering gear room, located at the upper end of the rudder stock.

Application characteristics

In modern large ships, usually only the upper rudder bearing is set, which bears all the weight and force. In addition to the upper rudder bearing, the rudder of a small ship is equipped with a rudder pin (rudder pin) at the bottom of the rudder blade.

Type		d	do	d1	d2	D	D1	D2	t	h	h1	h2	H	H'	H1	GB286-84 Bearing model	Mounting bolt		mas (kg)
		mm															数量 Qua	直径 Diameter
A	40	40	34	39_		200	108	170	14	10	36		60	14	22	7208	6	M12	6.1
	50	50	44	49		210	120	180	14	10	40		66	18	22	7210	6	M12	6.7
	60	60	54	59		230	140	200	15	10	44		70	20	25	7212	6	M12	8.2
	70	70	60	69		260	155	220	15	10	46		72	21	25	7214	6	M16	10.7
	80	80	70	79		290	180	250	18	12	49		79	24	25	7216	6	M16	15.7
	90	90	80	89		320	200	280	20	12	58		91	29	30	7218	6_	M16	228
	100	100	90	98		340	220	300	20	12	65		94	30	34	7220	6	M16	25.3
	110	110	100	108		360	240	320	20	12	69		98	34	34	7222	6	M16	30.2
	120	120	104	118		380	260	340	20	14	72		102	37	34	7224	6	M18	35.4
	130	130	114	128		410	290	370	22	14	74		112	38	36	7226	6	M18	50.1
	140	140	124	138		440	310	395	25	14	77		113	39	36	7228	6	M20	58.6
	150	150	134	148		460	330	415	25	14	79		117	42	36	7230	6	M20	68.7
B	120	120	110	119	130	350	220	310	16	20	46	15	106	40	30	3003124	6	M18	25.2
	130	130	120	128	140	370	240	330	16	20	52	15	114	46	30	3003126	6	M18	31.3
	140	140	130	138	150	390	250	650	16	20	53	15	120	48	30	3003128	6	M20	35.0
	150	150	140	148	160	400	265	360	16	20	56	15	125	51	30	3003130	6	M20	40.0
	160	160	150	158	172	420	286	380	18	20	60	18	127	57	30	3003132	6	M20	48.7
	170	170	160	168	182	435	300	395	18	20	67	18	134	57	35	3003134	6	M20	58.6
	180	180	168	178	192	460	315	420	18	22	74	18	143	61	38	3003136	6	M20	620
	190	190	178	188	202	490	330	440	18	24	75	18	158	67	38	3003135	6	M22	72.0
	200	200	188	198	212	520	362	470	20	25	82	20	163	72	40	3003140	6	M22	94.8
	220	220	208	218	234	550	392	500	20	25	90	20	171	80	40	3003144	6	M24	107.5
	240	240	228	238	254	570	410	520	20	25	92	20	173	82	40	3003148	6	M24	118.0
	260	260	245	258	278	650	460	585	25	28	104	20	192	92	42	3003152	6	M27	176.5
	280	280	265	278	298	670	480	605	25	28	106	20	201	98	42	3003156	6	M27	195.0
	300	300	285	298	320	720	520	650	30	30	118	24	210	103	50	3003160	6	M30	2100
	320	320	305	318	340	750	550	680	30	30	121	24	215	96	60	3003164	6	M30	233.0
	340	340	325	338	360	780	580	710	30	32	133	24	230	10B	60	3003168	6	M30	2720
C	120	120	110	119		370	220	320	22	20	46		179	81	50	3003124	12	M20	37.1
	130	130	120	128		390	240	340	22	20	52		188	89	50	3003126	12	M20	44.3
	140	140	130	138		390	240	340	22	20	53		190	90	50	3003128	12	M20	45.4
	150	150	140	148		410	260	350	22	20	56		192	93	50	3003130	12	M20	53.3
	160	160	150	158		435	280	385	24	20	60		198	86	60	3003132	12	M22	64.2
	170	170	160	168		455	300	405	24	20	67		211	93	60	3003134	12	M22	86.6
	180	180	168	178		470	315	420	24	22	74		229	104	65	3003136	12	M22	90.3
	190	190	178	188		490	330	440	25	24	75		245	105	65	3003138	12	M24	96.4
	200	200	188	198		520	360	470	25	25	82		248	110	70	3003140	12	M24	107.0
	220	220	208	218		540	370	485	25	25	90		256	117	70	3003144	12	M24	113.5
	240	240	228	238		550	380	495	25	25	92		258	118	70	3003148	12	M24	128.3
	260	260	245	258		600	420	540	28	28	104		280	138	70	3003152	12	M24	170.0
	280	280	265	278		640	440	575	28	28	106		287	133	80	3003156	12	M27	202.0
	300	300	285	298		700	510	630	28	30	118		308	146	80	3003160	12	M27	259.0
	320	320	305	318		720	520	850	32	30	121		313	150	80	3003164	12	M30	2,865
	340	340	325	338		760	560	690	32	32	133		323	158	80	3003168	12	M30	336.0
	360	360	345	358		790	580	720	32	32	134		324	165	80	3003172	12	M30	367.5
