A rudder bearing is far more than a simple support loop for your steering shaft. It serves as the critical mechanical interface between the kinetic force of your steering system and the static structure of the ship’s hull. While the rudder blade directs the vessel, the bearing dictates the responsiveness of the helm and the safety of the watertight seal.
If you ignore this component, you risk compromised handling, vibration, and catastrophic water ingress. A seized bearing can lock a steering system entirely, while a loose one introduces vibration that can fatigue the hull over time. The stakes are high because this component operates in a punishing environment, often submerged and subjected to immense side loads.
In this guide, we will explore the engineering behind these systems. You will learn how modern designs have evolved from simple bronze bushings to complex, self-aligning composite systems. We will also cover how to select the right material to combat electrolysis and reduce long-term maintenance costs.
Upper vs. Lower Dynamics: Upper bearings handle axial loads and alignment; lower bearings manage radial loads and hydrodynamic pressure.
Material Risks: Hygroscopic materials (like Nylon) can swell and seize; modern UHMWPE or composites are preferred for dimensional stability.
Friction Factors: Roller bearings offer superior feel for manual steering, while sleeve bearings provide higher load capacities for hydraulic systems.
Retrofit vs. New Build: Pre-embedded tube systems (Type-D) reduce installation labor compared to traditional align-and-drill methods.
To understand steering dynamics, you must distinguish between the two primary support points. The loads applied to a rudder stock are not uniform. Consequently, the engineering requirements for the top of the shaft differ drastically from those at the bottom.
The system is generally split into two distinct zones: the upper bearing inside the hull and the lower bearing, which often sits at the waterline or fully submerged.

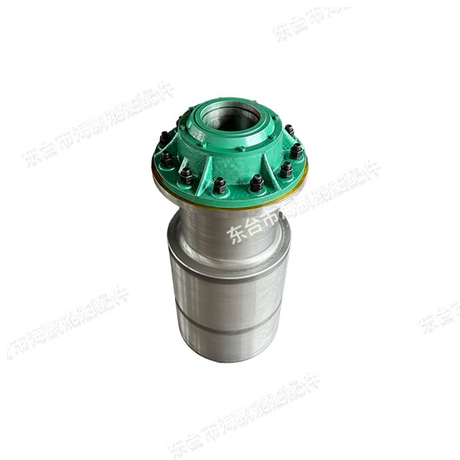

The upper bearing acts as the primary axial load carrier. Its main job is supporting the immense weight of the rudder stock and blade. In many commercial and heavy-displacement applications, this component is configured as a Flat Watertight Upper Rudder Bearing. This specific design is crucial because it often sits on the steering gear deck. It must support the vertical load while simultaneously preventing water ingress into the steering gear room if the tube floods.
Mechanically, these units often utilize ball or spherical carriers. This internal geometry allows the bearing to accommodate hull flex. As a vessel moves through waves, the hull deflects slightly. A rigid bearing would bind under this stress, but a spherical design self-aligns to prevent locking.
The Lower Rudder Bearing is the system’s "workhorse." It does not typically carry the weight of the rudder. Instead, it manages the radial loads generated by hydrodynamic lift and drag. Every time you turn the wheel, water pressure pushes against the rudder blade, creating a lever arm effect that tries to snap the shaft. The lower bearing absorbs this energy.
This component operates in a hostile environment. It is frequently submerged, meaning it must resist electrolysis. It also faces abrasive particulates like sand and silt, which can chew through softer materials. Reliability here is paramount because inspection often requires hauling the vessel out of the water.
The shape of your rudder dictates the stress placed on these bearings. Engineers look closely at the "Aspect Ratio"—the relationship between the rudder's height and its chord (width). High-aspect-ratio rudders (tall and skinny) generate significant leverage on the lower bearing.
The difference between spade and skeg rudders fundamentally changes bearing selection:
Spade Rudders: These are balanced rudders with no external support. The rudder stock acts as a cantilever. The lower bearing takes 100% of the side load. These systems require robust, high-strength bearings with tight tolerances to prevent wobble.

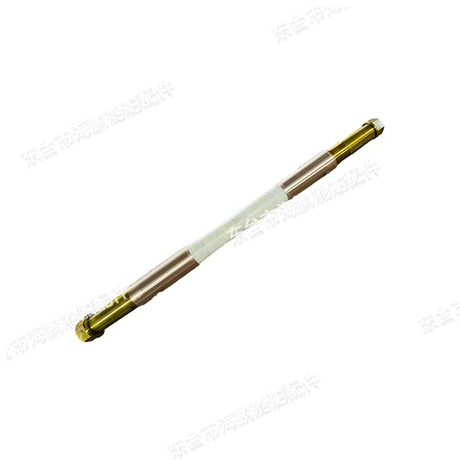

Skeg or Pintle Hung: Here, a bronze or stainless heel fitting (pintle) supports the bottom of the rudder. This distributes the load between the pintle and the internal bearings, allowing for smaller, lighter bearing housings inside the hull.
Choosing the right material is the most critical decision in the specification process. The marine environment punishes instability. A material that works well in air often fails when submerged due to water absorption or corrosion.
Moisture absorption is the silent killer of steering systems. Many boat owners mistakenly replace worn bearings with generic industrial plastics like Nylon or standard Delrin. While these materials are strong, they are hygroscopic.
The Risk: Industry data consistently highlights that Nylon can absorb up to 7-9% of its weight in water. This absorption causes the material to expand physically. In a precision-machined rudder housing, there is nowhere for the material to go but inward. This clamps down on the rudder stock, causing "rudder binding." The steering becomes stiff, and in severe cases, the rudder seizes completely.
The Solution: You should prioritize dimensionally stable polymers. Materials like UHMWPE (Ultra-High Molecular Weight Polyethylene) or PETP exhibit virtually zero water absorption. They maintain their clearance dimensions regardless of how long they are submerged.
Metals were the traditional standard for centuries, but they come with modern caveats.
Pros: Bronze offers incredible compressive strength. It handles shock loads well and has a proven track record in low-speed, heavy-load applications.
Cons: Metal bearings require lubrication (grease) to prevent galling. More dangerously, they are susceptible to crevice corrosion. Inside a rudder tube, oxygen levels are low. Stagnant water deprives stainless steel of the oxygen it needs to maintain its passive film, leading to rapid pitting. Furthermore, heavy metal bearings add unnecessary weight to the stern.
Modern engineering puts a heavy focus on synthetics for good reason.
Pros: High-quality composites are self-lubricating. They require no grease, which simplifies maintenance and prevents environmental pollution. They are immune to electrolysis, effectively electrically isolating the rudder stock from the hull. This prevents the battery effect that eats away at metal stern gear.
Trade-off: Installation requires precision. Unlike a bronze bushing that might be hammered in, composite housings often require interference fit calculations based on thermal expansion. The housing must be machined precisely to ensure the liner stays in place without crushing the shaft.
| Material Class | Water Absorption | Lubrication | Primary Risk | Ideal Application |
|---|---|---|---|---|
| Bronze | None | Grease/Oil | Electrolysis / Weight | Traditional displacement hulls |
| Nylon / Delrin | High (swells) | Water/Grease | Seizing due to swell | Avoid for underwater use |
| UHMWPE | Near Zero | Self-lubricating | Thermal expansion | Modern cruisers & workboats |
| Composite | Negligible | Self-lubricating | High cost | Performance vessels |
Beyond material, the physical architecture of the bearing determines how the steering feels. The choice between a sleeve and a roller system depends largely on the vessel’s purpose and steering mechanism.

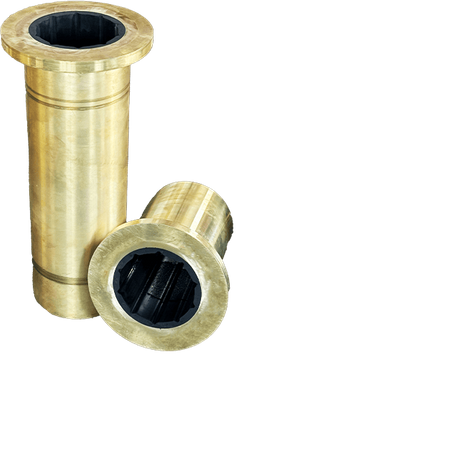

Sleeve bearings are simple tubes or bushings that the rudder stock slides against. There are no moving parts inside the bearing itself.
Best For: Commercial vessels, trawlers, and powerboats equipped with hydraulic steering. Hydraulic rams are powerful enough to overcome the higher friction of a sleeve bearing, so the pilot does not feel the resistance.
Profile: Because the entire inner surface contacts the shaft, sleeve bearings have a massive load-bearing area. This makes them exceptional at handling extreme shock loads, such as grounding or hitting floating debris.
Quietness: The solid polymer or metal construction dampens vibration significantly better than mechanical systems, reducing hull noise.
For sailors and manual steering applications, friction is the enemy. A Roller Rudder Bearing replaces the sliding action with rolling action, utilizing needle or spherical rollers.
Best For: Performance sailing vessels and manual steering systems. In these boats, "helm feel" is paramount. The pilot needs to feel the water flow over the rudder to trim the sails effectively.
Design Feature: Modern iterations favor cage-free roller designs (similar to the Jefa style). Traditional bearings used flimsy plastic cages to separate rollers, which often failed under load. Cage-free designs pack the housing full of rollers, maximizing load distribution and eliminating the cage as a failure point.
Performance: These systems drastically reduce static friction, known as "stiction." This ensures that even the slightest turn of the wheel translates immediately to rudder movement.
The installation method affects the watertight integrity of the hull and the labor cost of the project. Whether you are building from scratch or refitting an old vessel, the approach to the rudder port has changed.
In modern boat building, the "Type-D" approach is becoming the standard. This involves using FRP (Fiber Reinforced Plastic) liners or tubes that function as the bearing housing. Instead of drilling a hole after the hull is cured, builders laminate this housing directly into the hull during the initial layup.
ROI: This method eliminates the need for post-cure drilling, which is risky and labor-intensive. It also removes the complex alignment labor required to bolt on a traditional bronze flange. The bearing is integral to the hull structure, ensuring perfect strength and watertightness from day one.
Replacing a bearing on an existing boat is rarely straightforward.
Removal Challenges: Old bearings are often chemically bonded or seized due to corrosion. Removing a bronze bearing that has been in place for 20 years often requires heat, hydraulic press tools, or carefully cutting the bearing out from the inside without damaging the fiberglass tube.
Machining In-Place: Ideally, rudder tubes are perfectly round. In reality, they are often oval or distorted. If you install a perfectly round new bearing into a distorted tube, it will deform and seize the shaft. The solution is utilizing resin-chocked bearings. You install a slightly undersized bearing and inject high-strength epoxy (like Chockfast) between the bearing and the rough hull tube. This creates a perfect alignment regardless of the tube's irregularity.
The days of the dripping flax packing box are numbered. Modern installations are moving toward integrated sealing solutions.
Advanced bearing housings now feature lip-seal systems (similar to Tides Marine styles) built directly into the assembly. These provide dripless operation and lower friction than compressing flax rings against the shaft. However, they require a smooth, polished surface on the rudder stock to seal effectively.
Rudder bearings rarely fail instantly; they give warning signs. Recognizing these symptoms early can prevent an emergency haul-out during the season.
You can perform basic diagnostics without specialized tools.
The "Clunk" Test: While the boat is hauled out, grab the bottom of the rudder blade. Try to shake it side-to-side (transversely). A small amount of movement is normal for thermal expansion clearance, but a distinct "clunk" or visible movement of several millimeters indicates excessive radial play.
Visual Inspection: Drop the rudder and inspect the stock. With bronze bearings, look for "hourglassing"—where the shaft has worn down in the middle of the bearing contact area. If the shaft is worn, a new bearing alone won't fix the slop.
While underway, the helm tells the story:
Stiff Steering (Binding): If the wheel becomes hard to turn as the day warms up or after the boat has sat in the water for a few weeks, it usually indicates moisture absorption (swelling) or corrosion buildup squeezing the shaft.
Vibration: Shuddering or vibration under power often indicates excessive clearance in the lower bearing. As the propeller wash hits the loose rudder, it flutters, transmitting noise through the hull.
When selecting a replacement, look beyond the price tag. A traditional greased bronze system may be cheaper upfront but requires frequent hauling to replace seals and repack grease. It is labor-intensive. Conversely, a high-quality self-lubricating synthetic system costs more initially but offers near-zero maintenance for 5–10 years. For most owners, the reduced maintenance liability justifies the premium.
The rudder bearing is a deceptively simple component that governs the safety and enjoyment of your vessel. The "best" bearing is not a universal choice; it depends entirely on your vessel type and steering method. Powerboats with hydraulic steering benefit from the shock absorption of sleeve bearings, while sensitive sailing helms demand the low friction of roller systems.
When the time comes for replacement or specification, avoid the pitfalls of the past. Move away from hygroscopic plastics that seize and corrosion-prone metals that require constant greasing. Instead, opt for modern, dimensionally stable engineering plastics or composites. These materials offer the lowest long-term maintenance liability, ensuring your steering remains responsive and your bilges stay dry.
A: Measuring clearance requires precision. You must measure the outer diameter of the rudder stock and the inner diameter of the bearing housing. However, you cannot simply match them. You must subtract a specific clearance allowance for the thermal expansion of the bearing material. Synthetic bearings expand when warm, so they require a larger gap than metal bearings. Always consult the manufacturer’s calculator for the specific material you are using to avoid binding.
A: Yes, this is a common upgrade. However, composite bearings usually require a thicker wall than bronze to achieve the same strength. This means you may need to machine the housing bore larger or use a resin-chock installation method to adapt the new bearing to the old tube. You rarely can do a direct "drop-in" replacement without checking wall thickness dimensions first.
A: Three main culprits cause seizures. First is moisture absorption, where materials like Nylon swell and grab the shaft. Second is a bent rudder stock, which causes misalignment and binding at the bearing edges. Third is "rust jacking," where corrosion builds up between the housing and the bearing, crushing the bearing inward against the shaft.
A: For recreational vessels, a quality installation should last 5–10 years. Commercial vessels with high operational hours may see shorter intervals. Environment plays a huge role; boats operating in shallow, sandy, or silty waters will experience accelerated wear on water-lubricated bearings compared to those in deep, clean oceans.
A: Yes, but not necessarily to protect the rollers. Many plastic roller bearings are designed to run in seawater. However, you absolutely need a top seal (like a lip seal or gaiter) above the bearing to prevent that seawater from entering the boat’s interior. This often requires a "rudder port" configuration where the seal is separate from the rolling elements.
